Liquid Tight Blanking Plugs

Our range of Liquid Tight Blanking Plugs are manufactured from a highly resistant TPE Rubber which is available in both Shore A hardness's of either 75 or 85 depending on your requirements. Complete with a UL94V-0 flammability rating, these Liquid Tight Blanking Plugs are designed specifically to be water tight, oil tight, submersible and are UL certified for use in outdoor applications with temperature resistances between -60°c (-81°F) to 135°c (275°F). Each size comes with a slightly tapered shank, that allows for an easy installation by hand, without the need of additional tools.

We stock these Liquid Tight Blanking Plugs in a number of standard mounting hole sizes, such as 12.7mm, 22.2mm and 25.4mm. You can find all available options for these products in the table below, however if you require a custom solution then please get in touch with us using the number below.

Key Product Features

• Manufactured from a resistant TPE Rubber (Shore A 75 Or 85 Hardness)
• Liquid tight, Oil tight and submersible product
• UL certified for outdoor applications
• UL94V-0 flammability rating

Product Certifications

• Recognised under Underwriters' Laboratories File E51579
• Certified by the Canadian Standards Association File 8919

*Please get in touch for a detailed breakdown of product specification

Need help with our Liquid Tight Blanking Plugs? Give us a call on 01233 713 581

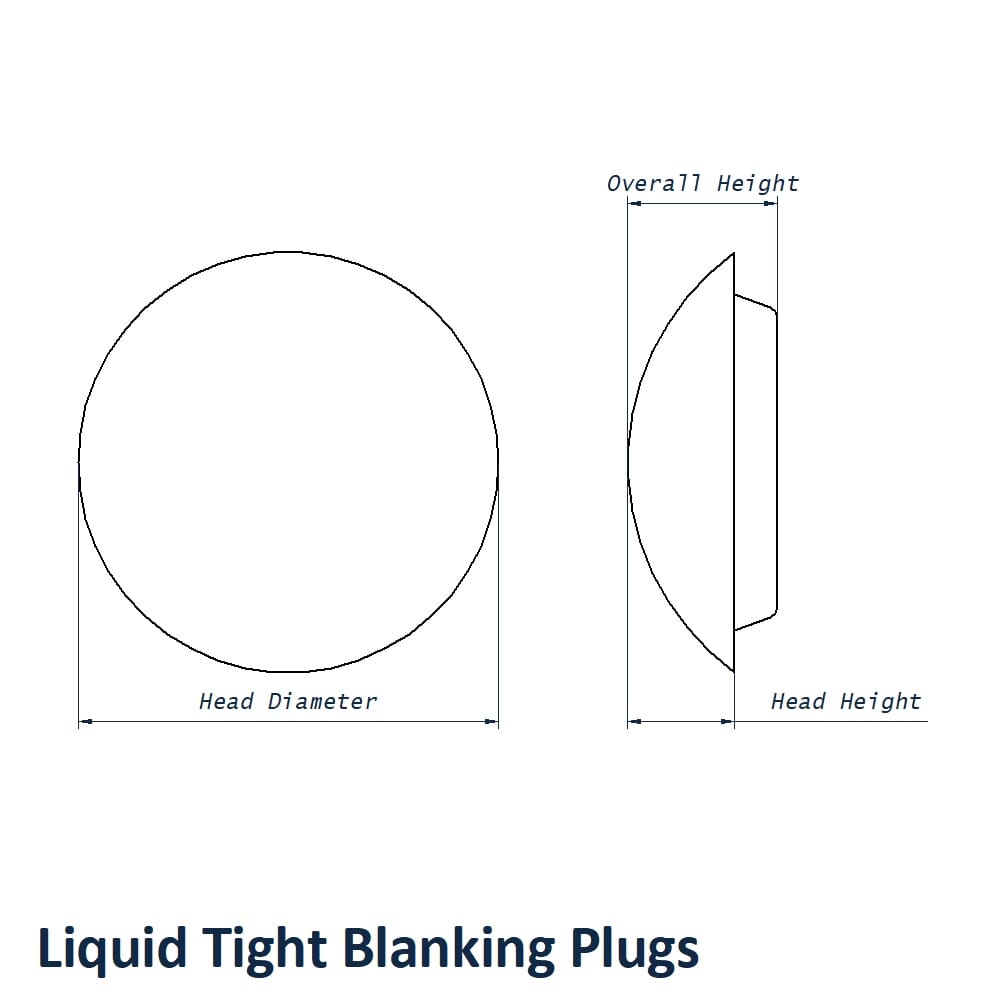

A = Mounting Hole Diameter
B = Head Diameter
C = Head Thickness
D = Shore Hardness
E = Colour
