Flanged Hex Nuts

There are a few dimensions you will need to accurately assess when measuring a flange hex nut: thread size, flange diameter, flange thickness and across flats width. To get an accurate recording you will need to use a calliper, as rulers and tape measures are unlikely to accurately measure components. You can measure the thread size of the flange nut by placing the callipers across the diameter of the hole in the nut. Next, proceed to measure the whole of the nut's flange at its widest point. Now use the callipers to measure the thickness from the top of the flange to the bottom. Finally, measure the "across flats", this means the distance between one flat side of the hex nut and its opposite side. These dimensions will give you enough information to order an equivalent replacement, but you should also identify the material and grade that it is manufactured from, to ensure an equivalent replacement.

The flange on a flanged nut provides a rim at the base of the nut which offers similar mechanical properties to a washer. It increases the surface area in contact with the fastened application and increases stability and load distribution. It is not necessary to use washers with flange nuts, and this is one of the main advantages of using flanged hex nuts. Not having to add the nut and the washer separately to an application makes installation faster and less effort. Flange nuts may also work out cheaper than purchasing a hex nut and a washer separately, providing a cost advantage.

A flange nut is a term used to describe any nut with a flat surface at the base of the nut. A lock nut is used to describe any nut with a locking mechanism that is normally used to combat nut loosening in high vibration applications. Both terms refer to types of nuts, however, they are not mutually exclusive. For example, our serrated flange nuts and flange nyloc nuts are examples of nuts that are both flanged nuts and lock nuts. The serrated flange nut uses teeth to lock into the application's surface, and the flanged nyloc nuts use a nylon insert that applies friction to the application's thread. When tightened, both create a locking mechanism that is effective at preventing the nut from loosening. Both serrated flange nuts and flange nyloc nuts have flanges but not all lock nuts have flanges. Flanges act as a built in washer for the nut and that may bring advantages that are desirable for some applications.

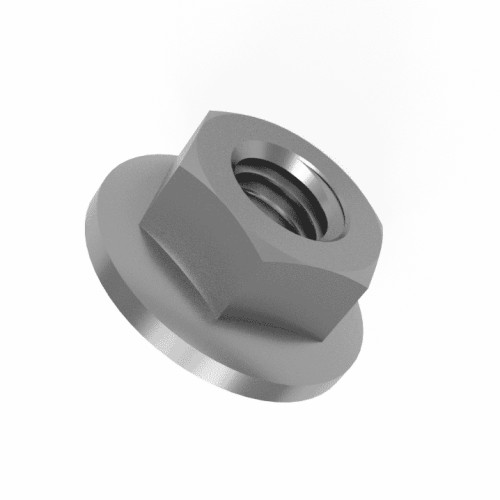

A flanged hex nut is a specially designed hex nut that includes an integrated flat edge at its base. The flat edge is known as a flange and in many ways serves the same purpose as a washer. For this reason, you can think of a flange nuts as being similar in application to a standard nuts with a washer placed underneath. The integration of the washer on a flanged nut improves load distribution, offers enhanced stability and helps to increase both the ease and speed of application. They may also offer cost savings when compared to purchasing a hex nut and washer separately. This makes them a popular component for use in fastening industrial machinery, securing plumbing and pipework systems, and the assembly of structures.

The most commonly used terms to refer to flanged hex nuts are flange nuts or simply, flanged nuts. They might also be described as flange head nuts and some people call them collar nuts. More technically minded customers will also tend to call them by their DIN standard. For our range of flanged nuts this would be the din6923 or din6926 varieties.

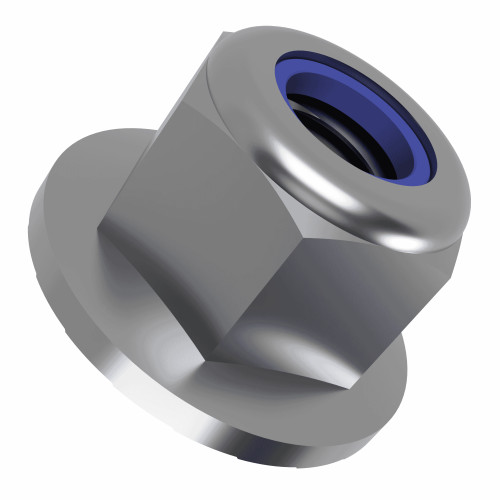

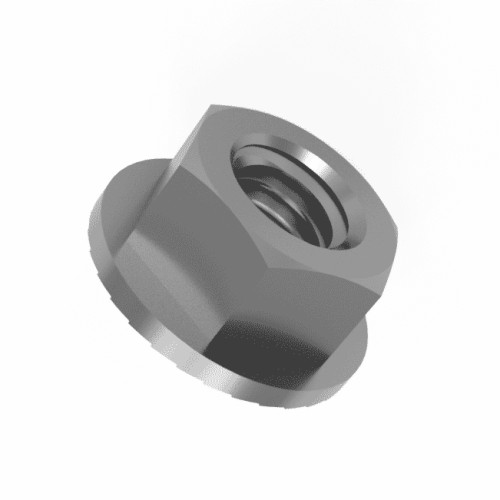

We are proud to offer the most popular styles of flange nuts to the UK market and our international customers. We stock flanged hex nuts, serrated flange nuts and flange nyloc nuts. The serrated nuts have small ridges cut into the circumference of the flange. These are designed to bite into the surface of the application as the nut is tightened on its thread. This creates friction and a locking effect similar to what is found in locking nuts. This provides an effective anti vibration solution for use in applications exposed to constant vibrations, that may cause a nut to loosen over time. Flange nyloc nuts are similar to nyloc nuts and utilise a nylon insert inside the thread of the nut to help provide friction and combat vibration loosening. Flange nyloc nuts have the addition of the washer like rim at the bottom of the nut, effectively combining a hex nut and washer in one component. Both serrated flange nuts and flange nyloc nuts provide effective options for fastening components in high vibration applications such as the automotive and aerospace industries, as well as on heavy machinery. The addition of the flange helps flanged nyloc nuts to offer enhanced stability and load distribution than standard nyloc nuts, thanks to the increased surface area that the flange provides.

We supply flange nuts in metric thread sizes ranging from M3 up to M16. However, if you need a size that isn't listed or require non-metric sizing, please contact us. Our most popular offerings are the M8 flange nut and M6 flange nut. Customers also commonly purchase M10 flange nuts and M12 flange nuts for their projects.

There are a few dimensions you will need to accurately assess when measuring a flange hex nut: thread size, flange diameter, flange thickness and across flats width. To get an accurate recording you will need to use a calliper, as rulers and tape measures are unlikely to accurately measure components. You can measure the thread size of the flange nut by placing the callipers across the diameter of the hole in the nut. Next, proceed to measure the whole of the nut's flange at its widest point. Now use the callipers to measure the thickness from the top of the flange to the bottom. Finally, measure the "across flats", this means the distance between one flat side of the hex nut and its opposite side. These dimensions will give you enough information to order an equivalent replacement, but you should also identify the material and grade that it is manufactured from, to ensure an equivalent replacement.

The flange on a flanged nut provides a rim at the base of the nut which offers similar mechanical properties to a washer. It increases the surface area in contact with the fastened application and increases stability and load distribution. It is not necessary to use washers with flange nuts, and this is one of the main advantages of using flanged hex nuts. Not having to add the nut and the washer separately to an application makes installation faster and less effort. Flange nuts may also work out cheaper than purchasing a hex nut and a washer separately, providing a cost advantage.

A flange nut is a term used to describe any nut with a flat surface at the base of the nut. A lock nut is used to describe any nut with a locking mechanism that is normally used to combat nut loosening in high vibration applications. Both terms refer to types of nuts, however, they are not mutually exclusive. For example, our serrated flange nuts and flange nyloc nuts are examples of nuts that are both flanged nuts and lock nuts. The serrated flange nut uses teeth to lock into the application's surface, and the flanged nyloc nuts use a nylon insert that applies friction to the application's thread. When tightened, both create a locking mechanism that is effective at preventing the nut from loosening. Both serrated flange nuts and flange nyloc nuts have flanges but not all lock nuts have flanges. Flanges act as a built in washer for the nut and that may bring advantages that are desirable for some applications.

A flanged hex nut is a specially designed hex nut that includes an integrated flat edge at its base. The flat edge is known as a flange and in many ways serves the same purpose as a washer. For this reason, you can think of a flange nuts as being similar in application to a standard nuts with a washer placed underneath. The integration of the washer on a flanged nut improves load distribution, offers enhanced stability and helps to increase both the ease and speed of application. They may also offer cost savings when compared to purchasing a hex nut and washer separately. This makes them a popular component for use in fastening industrial machinery, securing plumbing and pipework systems, and the assembly of structures.

The most commonly used terms to refer to flanged hex nuts are flange nuts or simply, flanged nuts. They might also be described as flange head nuts and some people call them collar nuts. More technically minded customers will also tend to call them by their DIN standard. For our range of flanged nuts this would be the din6923 or din6926 varieties.

We are proud to offer the most popular styles of flange nuts to the UK market and our international customers. We stock flanged hex nuts, serrated flange nuts and flange nyloc nuts. The serrated nuts have small ridges cut into the circumference of the flange. These are designed to bite into the surface of the application as the nut is tightened on its thread. This creates friction and a locking effect similar to what is found in locking nuts. This provides an effective anti vibration solution for use in applications exposed to constant vibrations, that may cause a nut to loosen over time. Flange nyloc nuts are similar to nyloc nuts and utilise a nylon insert inside the thread of the nut to help provide friction and combat vibration loosening. Flange nyloc nuts have the addition of the washer like rim at the bottom of the nut, effectively combining a hex nut and washer in one component. Both serrated flange nuts and flange nyloc nuts provide effective options for fastening components in high vibration applications such as the automotive and aerospace industries, as well as on heavy machinery. The addition of the flange helps flanged nyloc nuts to offer enhanced stability and load distribution than standard nyloc nuts, thanks to the increased surface area that the flange provides.

We supply flange nuts in metric thread sizes ranging from M3 up to M16. However, if you need a size that isn't listed or require non-metric sizing, please contact us. Our most popular offerings are the M8 flange nut and M6 flange nut. Customers also commonly purchase M10 flange nuts and M12 flange nuts for their projects.
