Roll Pins ISO 8750

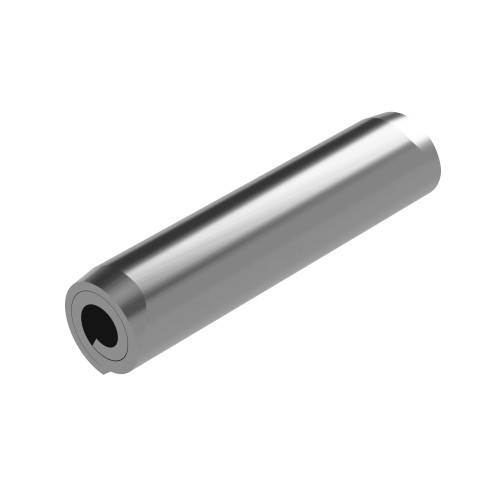

Roll Pins, also known as Spiral Pins or Coil Pins, are manufactured to ISO 8750 and stocked in stainless steel. Roll Pins are self retaining fasteners, where the rolled coil allows the pins to assume the diameter of the hole they are inserted into. ISO 8750 Pins also have tapered ends for ease of insertion.
Roll Pins are often used locate and secure mating parts during assembly. They can also be used as a key when fasteneing shafts.
These Roll Pins conform to the size of the hole whilst providing a radial force to keep the pin in place. As an alternative we also offer Slotted Spring Pins which perform a similar task.
Our Roll Pins are available in A1 (Equivalent to 303) Stainless Steel in sizes 1mm x 4mm to 8mm x 50mm. For our full selection of sizes and materials see the product table displayed below, or get in touch with a member of our staff.
Key Product Features:
- Manufactured from a high strength Stainless Steel
- Easy to install and use
Commonly Used For:
- Locating parts during assembly
- Reducing misalignment
Also Refered to As:
- Roll Pins
- Spiral Pins
- Spiral Roll Pins
- Spiral-span Pins
- Spiral Spring Pins
- Coil Pins
Equivalent Standards:
- DIN EN 8750 (Germany, Deutsches Institut für Normung)
- DIN 7343 (Germany, Deutsches Institut für Normung)
- ISO 8750 (International Standards ISO)
- UNI 6875 (Italy, Ente Italiano di Normazione)
- CSN 022162 (Czech technical standard)
- PN 85029 (Poland, Polski Komitet Normalizacyjn)
