Armour Cable Bushings

These specialised cable bushings are designed for use with armoured cable types like BX cables or FMC cables. They have electrical product safety certificates registered under Underwriter's Labortories File E51579 and Canadian Standards Association File 213252. Sometimes known as bx cable bushings, the product is an essential component if you are installing armoured electrical cables.

When used correctly, armoured cable bushings will ensure protection and safety by preventing sharp metal edges from causing damage to the internal cable and possible short circuits. They are recommended as part of good electrical installation and to ensure compliance with electrical safety regulations.

Using armour cable bushings will:

• Protect the inner conductors of the cable from damage.
• Reduce the risks of electrical shocks and fire hazards resulting from cable damage
• Help meet electrical code requirements
• Enhance the durability and longevity of metal armoured cable installations.
• Assist with easier and safer installation of armoured cables

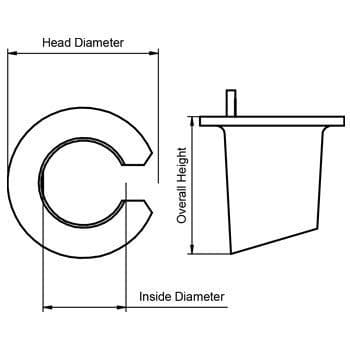

The bushings are manufactured from high dielectric polyethylene which is able to operate at temperatures as low as -40 Degrees Celsius. We supply various sizings with Internal Diameters ranging from 9.4mm up to 18.5mm.

If you need a size that is not listed on the page, please let us know using our contact page.
