High Temp Plug Kits

Our High Temperature Plug Kits or 'Powder Coating Plug Kits' contain a variety of different plug sizes across both Silicone or EPDM Rubber depending on your preference. Each individual kit includes common plug sizes and in most cases can be reused if used during the Powder Coating process.

Please note that we also offer a range of other masking kits, including ones with both caps and plugs, or tapes. You can find these by clicking here.

Each of our Powder Coating Plug Kits are tried and tested as high temperature masking products. This includes their use during common processes such as during Powder Coating, Shot Blasting, and Anodising.

Inside The General High Temp Plug Kit: KIT001

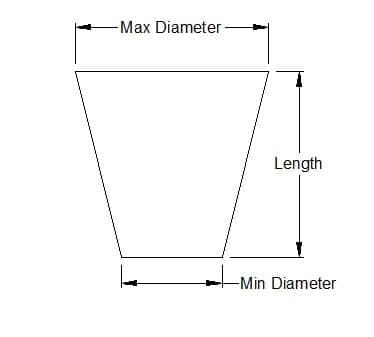

120 Silicone Tapered Plugs across 5 different sizes

• (50) 1.6mm Bottom x 5.08mm Top x 19.05mm Long Natural
• (30) 4.78mm Bottom x 8.71mm Top x 15.88mm Long Natural
• (16) 7.9mm Bottom x 12.01mm Top x 19.99mm Long Grey
• (12) 11.1mm Bottom x 15.88mm Top x 20.65mm Long Natural
• (12) 13mm Bottom x 16.99mm Top x 25.4mm Long Natural

Inside The Complete Plug Kit: KIT013
280 Silicone Tapered Plugs across 4 different sizes

• (100) 1.6mm Bottom x 4.75mm Top x 15.88mm Long Natural
• (100) 1.19mm Bottom x 5mm Top x 27.89mm Long Natural
• (50) 1.6mm Bottom x 5.08mm Top x 19.05mm Long Natural
• (30) 3.18mm Bottom x 6.35mm Top x 25.40mm Long Natural

Inside The Medium Silicone Stopper Kit: KIT007
45 Silicone Tapered Plugs across 3 different sizes

• (20) 11.1mm Bottom x 15.88mm Top x 20.65mm Long Natural
• (15) 13mm Bottom x 16.99mm Top x 25.4mm Long Natural
• (10) 14.27mm Bottom x 19mm Top x 25.4mm Long Natural

Inside The Large Silicone Stopper Kit: KIT008
19 Silicone Tapered Plugs across 5 different sizes

• (5) 23.01mm Bottom x 27mm Top x 25.40mm Long Natural
• (5) 26mm Bottom x 32mm Top x 25.4mm Long Natural
• (5) 30.18mm Bottom x 36.53mm Top x 25.4mm Long Natural
• (2) 33.35mm Bottom x 41.28mm Top x 25.40mm Long Natural
• (2) 37.31mm Bottom x 44.45mm Top x 25.40mm Long Natural

Inside The XL Silicone Stopper Kit: KIT011
9 Large Silicone Tapered Plugs across 3 sizes

• (4) 41.28mm Bottom x 50.01mm Top x 25.4mm Long Natural
• (3) 47.63mm Bottom x 55.96mm Top x 25.4mm Long Natural
• (2) 53.98mm Bottom x 63.5mm Top x 25.4mm Long Natural

XL Kit also available 61-127mm - KIT010

Inside The High Temp Ribbed Plug Kit: KIT004
70 Silicone Ribbed Plugs across 8 sizes

• (10) 6mm x 8mm Silicone Ribbed Plug Natural
• (10) 8mm x 10mm Silicone Ribbed Plug Natural
• (10) 10mm x 12mm Silicone Ribbed Plug Natural
• (10) 12mm x 14mm Silicone Ribbed Plug Natural
• (10) 14mm x 16mm Silicone Ribbed Plug Natural
• (10) 16mm x 18mm Silicone Ribbed Plug Natural
• (5) 22mm x 25mm Silicone Ribbed Plug Natural
• (5) 25mm x 28mm Silicone Ribbed Plug Natural

Inside The EPDM Plug Kit: KIT009
120 EPDM Tapered Plugs across 5 sizes

• (50) 1.6mm Bottom x 5.08mm Top x 19.05mm Long Black
• (30) 4.78mm Bottom x 8.71mm Top x 15.88mm Long Black
• (16) 7.9mm Bottom x 12.01mm Top x 19.99mm Long Black
• (12) 11.1mm Bottom x 15.88mm Top x 20.65mm Long Black
• (12) 13mm Bottom x 16.99mm Top x 25.4mm Long Black

Require a custom Powder Coating Plug Kit? Give us a call today on 01233 713581

A = Caps Included
B = Pieces
C = Plugs Included
D = Tapes Included
E = Temperature Resistance
