Metal Offset Lift-off Hinge

Metal Offset Lift-off Hinges are designed to allow the installation of a removing door. These Offset lift-off hinges have been designed to be used in a wide range of doors and panels for industrial cabinets and enclosures.

Two or more hinges can be installed in the same orientation to allow the door to be lifted off for better access of transportation. These hinges can be installed with opposing orientation to remove the ability to lift off the door.

Metal Offset Lift-off Hinges come with threaded holes for clean mounting with no exposed fixings. They can be used for mounting doors, panels and safety guards on cabinets and enclosures; most commonly used in IT, HVAC, Telecoms and manufacturing machinery.  

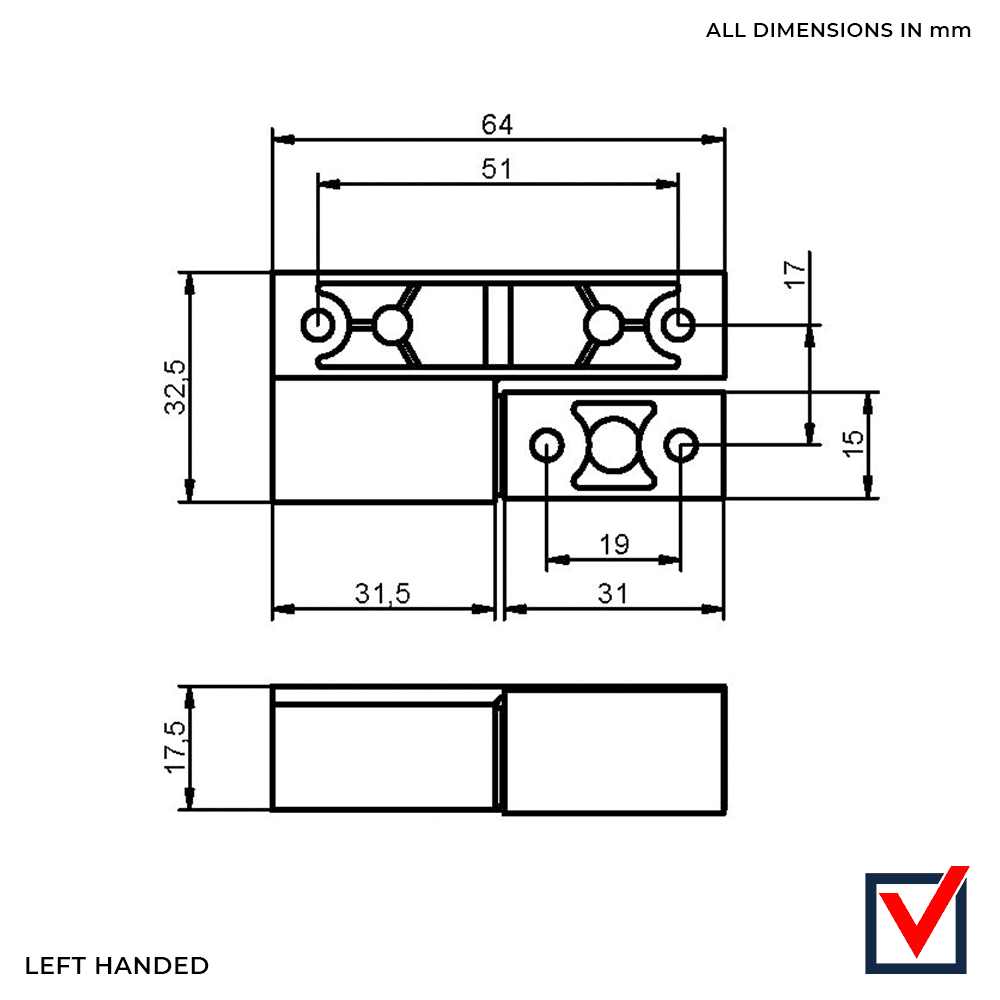

We currently stock these Hinges in a black powder coated Die Cast Zinc material as standard, in assembled sizes of 64mm x 32.5mm, in both a left-handed and right-handed variant. The male part has a hole distance of 19mm and the female offset part has a hole distance of 51mm. When assembled, the two parts have a horizontal hole distance of 17mm.

Can't find the Hinge you're looking for? Give us a call on 01233 713581
