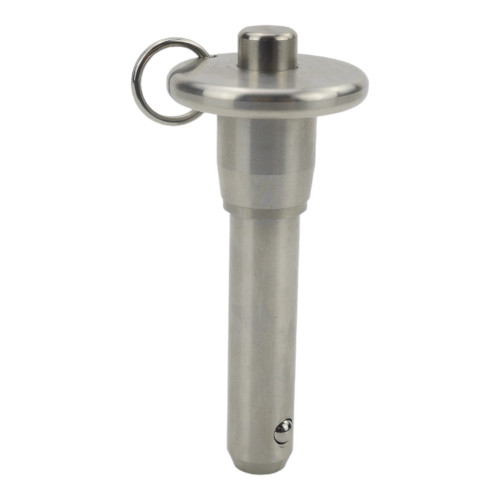

Push Knob Detent Pins

Our Push-Knob Detent Pins are made up of a Flange, Pull ring and Push-Knob. To use this variation, pull on the Detent Pin and press the knob to compress the springs, which in turn will retract the ball bearings and allow a space for the pin to be removed.

The pull ring offers two functions during use; an attachment site for a retaining chain to ensure that the pin is not mislaid and as a secondary means of removing the pin, as a substitute for the Flange. This Detent Pin is made from A2 Stainless Steel, so you can be sure that this product will endure the test of time.

Installation Notes: This variant is designed to be inserted into a hole 0.1mm larger than the diameter of the body.

Key Product Features:

• Corrosion resistant
• Flange feature for external grip
• Quick release mechanism
• RoHS, REACH, Conflict Materials, California Prop 65 Compliant

Where are Push Knob Detent Pins commonly used?
Push Knob Detent Pins are versatile within several applications but can commonly be used within the fitness industry to adjust the load on weight machinery.

Can't find the Detent Pin you're looking for? Give us a call on 01233 713581
