Allen Key Camlocks

Allen Key Camlocks have a quarter turn mechanism which works by directing the Cam away from the contact point. This locking mechanism requires the user to turn the Knob 90° to lock and unlock the application. Allen Key Camlocks are ideal for applications such as cabinets and secure enclosures.

Our range of Allen Key Camlocks have an IP Rating of IP54; protecting them from dust and splashing water. Here at Vital Parts, our Allen Key Camlocks are comprised of a Die Cast Zinc housing and insert with a Zinc Plated Steel Cam. Die Cast Zinc Plated Steel is hardwearing and has a strength of 48,000 PSI; making our Allen Key Camlocks ideal for heavy duty use.

Each of our Allen Key Camlocks are supplied with the matching Allen Key counterpart; allowing for immediate use.

Allen Key Camlocks have a quarter turn locking mechanism which requires the user to turn the Knob 90° to lock and unlock the application.

These Camlocks are stocked in two different designs:
• Non-adjustable – The Rotating Cam has a fixed distance from the head of the Cylinder Lock.

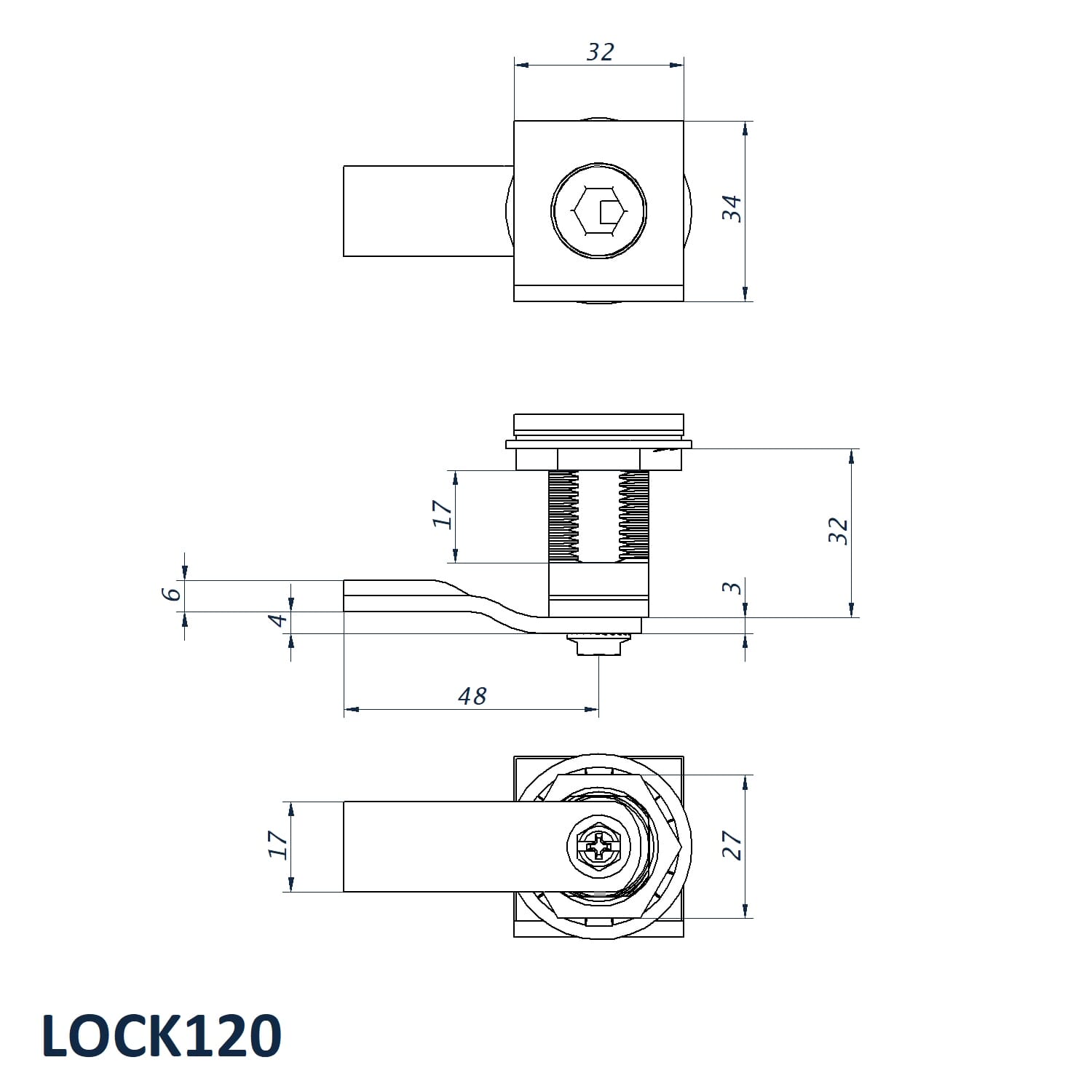

• Adjustable – Provides a 25mm adjustment from the head of the Cylinder Lock.

Key Product Features:
• IP54 Rating
• RoHS, REACH, Conflict Minerals and California Prop 65 compliant
• Strength of 48,000 PSI
