Fixing Plate Index Plungers - IND019
Product code:
IND019
View All Specifications
| Quantity | Unit Price (ex. VAT) |
Unit Price (inc. VAT) |
|---|---|---|
| 0 - 25 | £6.57 | £6.57 |
| 25 - 49 | £6.30 | £6.30 |
| 50 - 99 | £6.05 | £6.05 |
| 100 - 499 | £5.81 | £5.81 |
| 500 + | £5.35 | £5.35 |
£6.57
/ each
Quantity:
Product Stock
Product Specifications

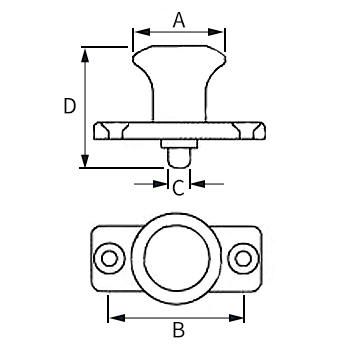

IND019- Head Diameter
- 25mm
- Length
- 37mm
- Hole To Hole
- 30mm
- Plunger Diameter
- 6mm
- Locking Rest Position
- Yes
- Material & Colour
- Thermoplastic & Zinc Steel
- With Cap?
- No
Same Day Dispatch Available
| Order by 4.00pm (UK) for same day dispatch (Monday – Thursday, 2.00pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
+
+
Total Price: £0.00
Product Description

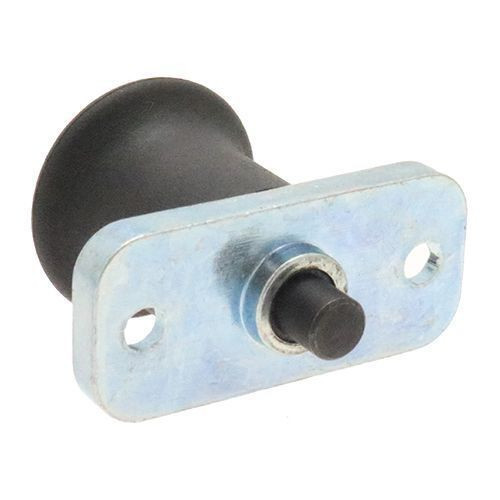

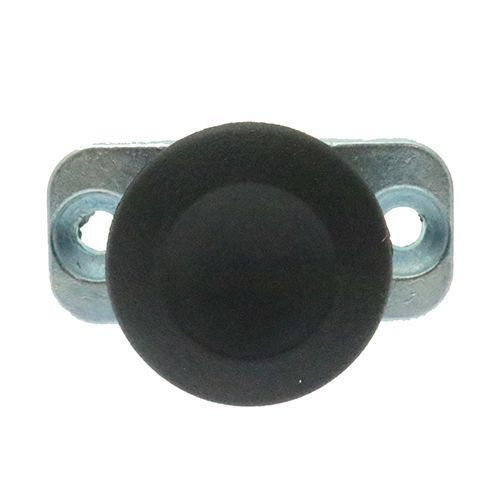

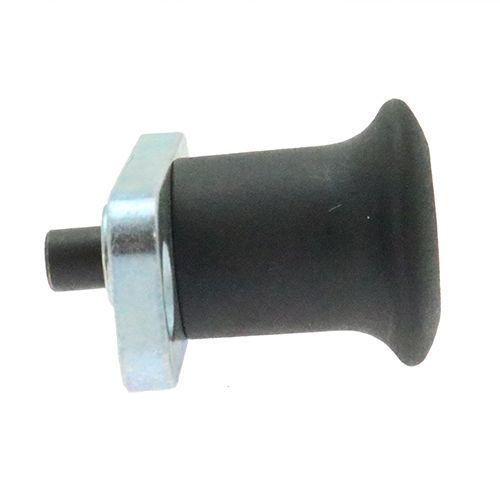

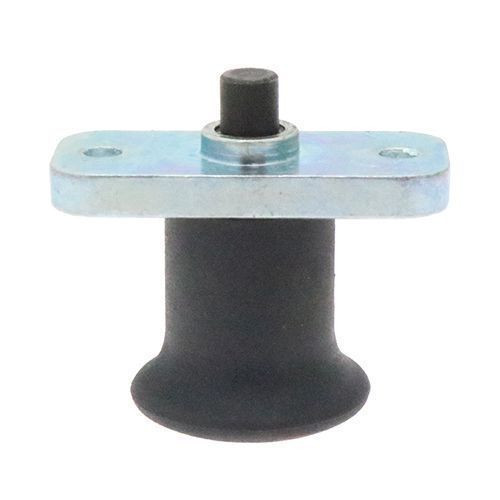

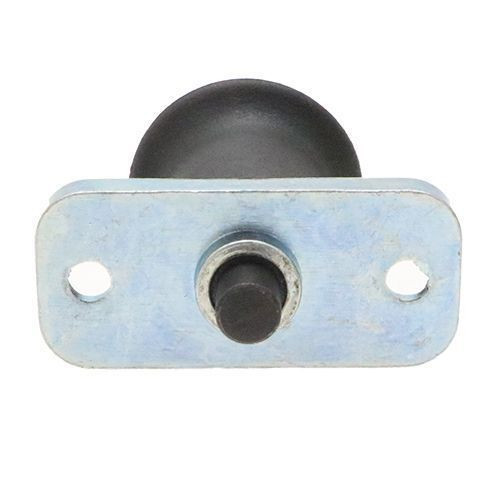

This fixing plate index plunger has a head diameter of 25mm and a length of 37mm. It has a plunger diameter of 6mm and the distance between its mounting holes is 30mm. It is constructed from Thermoplastic & Zinc Steel. Does it utilise a locking rest position? Yes. Does it come with a cap? No.
Fixing Plate Index Plungers are available with or without a 90° locking rest position, complete with a plate for easy attachment. Made from thermoplastic and zinc plated steel, they are designed to withstand high levels of weight and load, making them versatile for different installations.
They come with a matte black knob for industrial use and are recommended as a catching mechanism that can lock shut without any additional tools or hardware.
Available in a range of head diameters (25mm - 31mm) and fixing plate sizes (40mm to 46mm), they are commonly used as an alternative to standard knobs for locking and catching applications.
Fixing Plate Index Plungers are available with or without a 90° locking rest position, complete with a plate for easy attachment. Made from thermoplastic and zinc plated steel, they are designed to withstand high levels of weight and load, making them versatile for different installations.
They come with a matte black knob for industrial use and are recommended as a catching mechanism that can lock shut without any additional tools or hardware.
Available in a range of head diameters (25mm - 31mm) and fixing plate sizes (40mm to 46mm), they are commonly used as an alternative to standard knobs for locking and catching applications.
