Lock Position Index Plungers - IND012
| Quantity | Unit Price (ex. VAT) |
Unit Price (inc. VAT) |
|---|---|---|
| 0 - 25 | £6.43 | £6.43 |
| 25 - 49 | £6.17 | £6.17 |
| 50 - 99 | £5.93 | £5.93 |
| 100 - 499 | £5.68 | £5.68 |
| 500 + | £5.24 | £5.24 |
Product Stock
Product Specifications

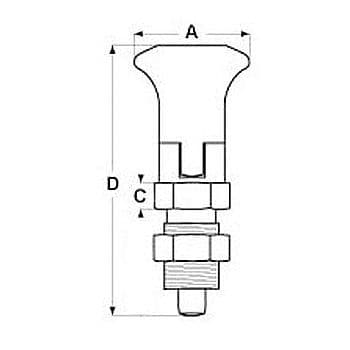

IND012- Thread Size
- M16 x 1.5mm
- Head Diameter
- 31mm
- Length
- 76mm
- Plunger Diameter
- 8mm
- Locking Rest Position
- Yes
- Material & Colour
- Burnished Steel
Same Day Dispatch Available
| Order by 4.00pm (UK) for same day dispatch (Monday – Thursday, 2.00pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description

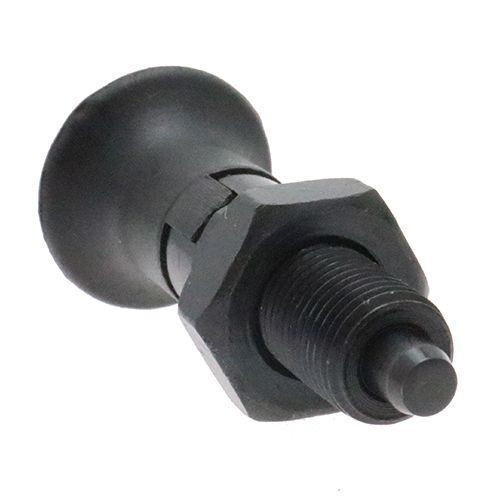

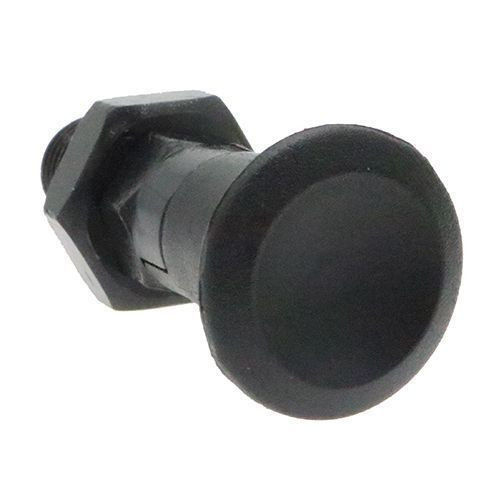

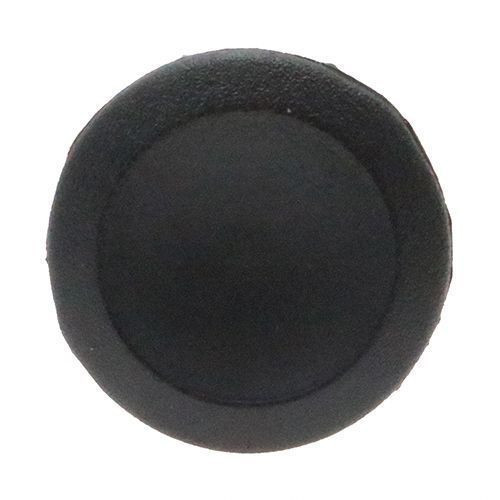

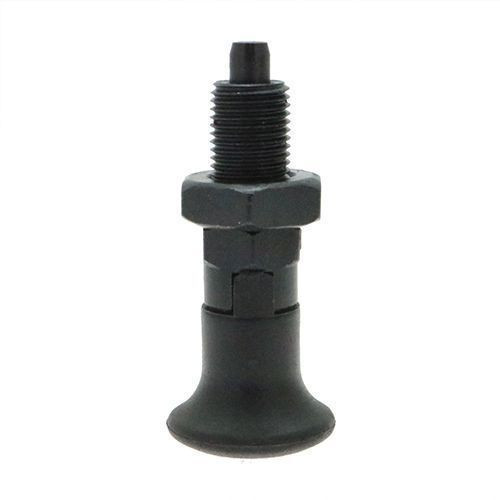

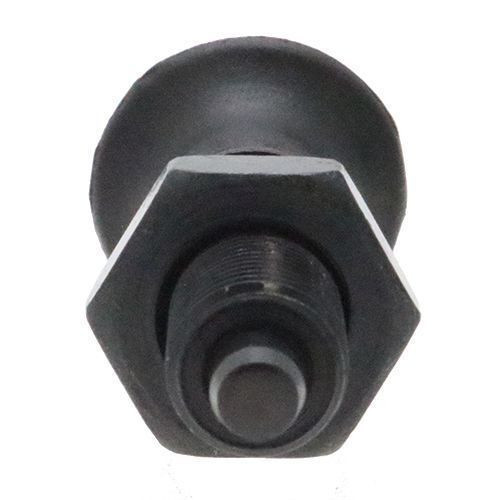

This lock position index plunger has a length of 76mm and a head diameter of 31mm. It has a M16 x 1.5mm thread size and a 8mm plunger diameter. It is constructed from Burnished Steel.
Lock Position Index Plungers are spring loaded plungers with a 90° locking rest position, available in burnished steel or stainless steel and thermoplastic. They are commonly used in heavy duty applications to fix or position an object, such as panel catches for appliance doors.
The threaded body allows for flexibility in choosing the right size, with options ranging from M10-M16 and head diameters from 21mm to 31mm. They are a reliable choice for manufacturers during production and provide a quality locking mechanism.
These spring plungers are also commonly used as positioning elements and locking mechanisms.
