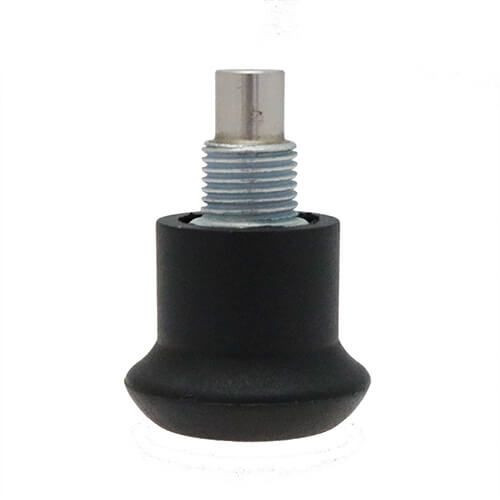

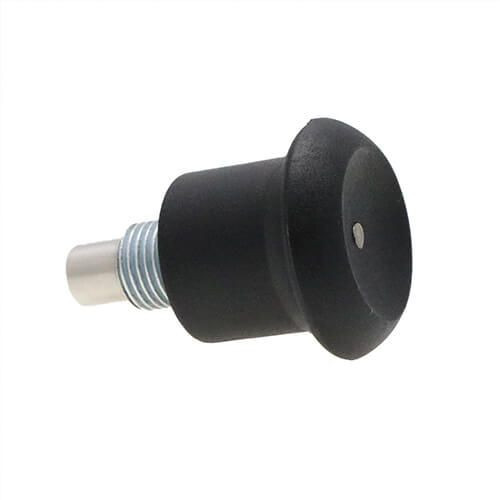

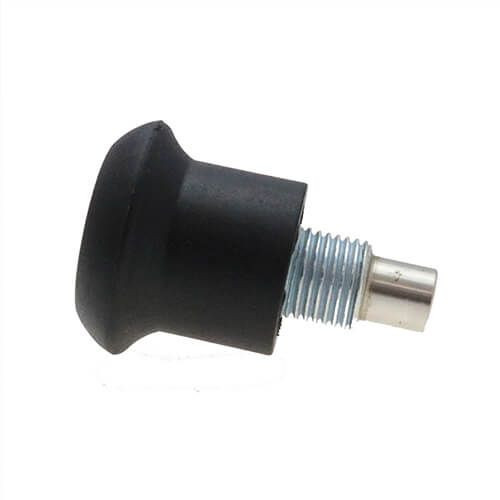

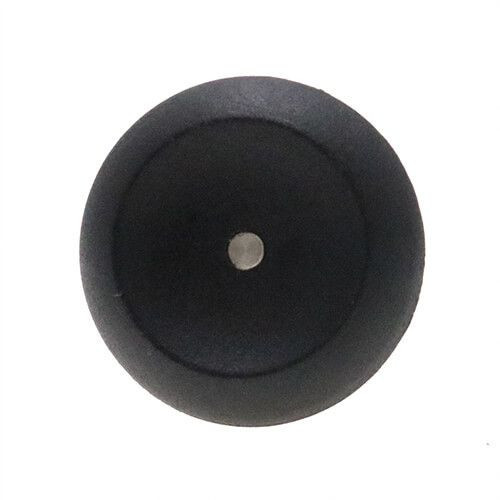

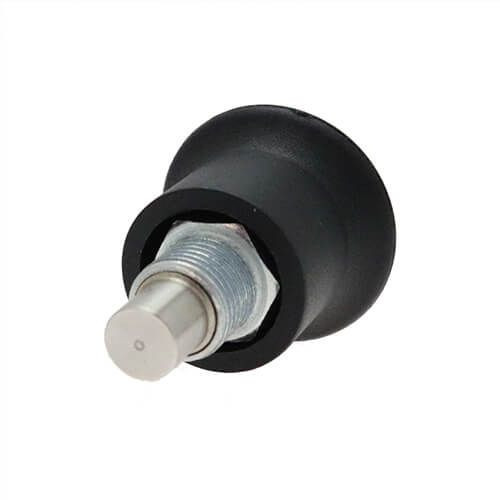

Mini Threaded Index Plungers - IND0087
Product code:
IND0087
View All Specifications
| Quantity | Unit Price (ex. VAT) |
Unit Price (inc. VAT) |
|---|---|---|
| 0 - 25 | £6.29 | £6.29 |
| 25 - 49 | £6.04 | £6.04 |
| 50 - 99 | £5.80 | £5.80 |
| 100 - 499 | £5.57 | £5.57 |
| 500 + | £5.13 | £5.13 |
£6.29
/ each
Quantity:
Product Stock
Product Specifications

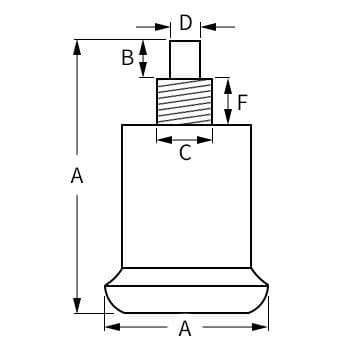

IND0087- Thread Size
- M10 x 1.0mm
- Thread Length
- 8mm
- Plunger Diameter
- 7mm
- Overall Size
- 25mm x 35mm
- Pin Length
- 7mm
- Rest Position
- Yes
Same Day Dispatch Available
| Order by 4.00pm (UK) for same day dispatch (Monday – Thursday, 2.00pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
+
+
Total Price: £0.00
Product Description
This mini index plunger has an overall size of 25mm x 35mm. It is sized to fit a M10 x 1.0mm thread size. It has a pin length of 7mm and a thread length of 8mm. Its plunger diameter is 7mm. Does it feature a rest position? Yes
Mini Threaded Index Plungers are a high-quality release mechanism manufactured from thermoplastic, zinc plated steel, and stainless steel. They feature an ergonomic design, making them comfortable for consumer hardware applications. The retractable threaded pin is screwed into a female threaded object to act as a release mechanism.
Mini Threaded Index Plungers come with or without a rest position and have a minimalist design. These plungers are available in various sizes, and custom sizing may also be requested if necessary.
The knob material is thermoplastic, the body material is zinc-plated steel, and the pin and spring material is stainless steel.
Mini Threaded Index Plungers are a high-quality release mechanism manufactured from thermoplastic, zinc plated steel, and stainless steel. They feature an ergonomic design, making them comfortable for consumer hardware applications. The retractable threaded pin is screwed into a female threaded object to act as a release mechanism.
Mini Threaded Index Plungers come with or without a rest position and have a minimalist design. These plungers are available in various sizes, and custom sizing may also be requested if necessary.
The knob material is thermoplastic, the body material is zinc-plated steel, and the pin and spring material is stainless steel.
