Ring Pull Index Plungers - IND032
Product code:
IND032
View All Specifications
| Quantity | Unit Price (ex. VAT) |
Unit Price (inc. VAT) |
|---|---|---|
| 0 - 25 | £1.25 | £1.25 |
| 25 - 49 | £1.23 | £1.23 |
| 50 - 99 | £1.20 | £1.20 |
| 100 - 499 | £1.18 | £1.18 |
| 500 + | £1.15 | £1.15 |
£1.25
/ each
Quantity:
Product Stock

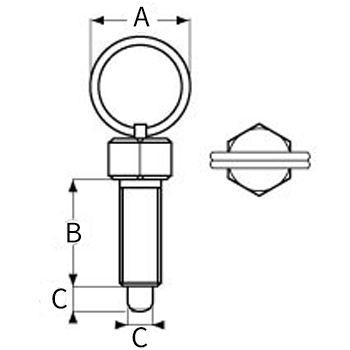

Product Specifications
IND032- Thread Size
- M8
- Material
- Zinc Plated Steel w/ SS Pin
- Head Diameter
- 18mm
- Length
- 16mm
- Plunger Diameter
- 5mm
- Plunger Length
- 5mm
- Initiating Force
- 8N
- Full Retraction Force
- 30N
Same Day Dispatch Available
| Order by 4.00pm (UK) for same day dispatch (Monday – Thursday, 2.00pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
+
+
Total Price: £0.00

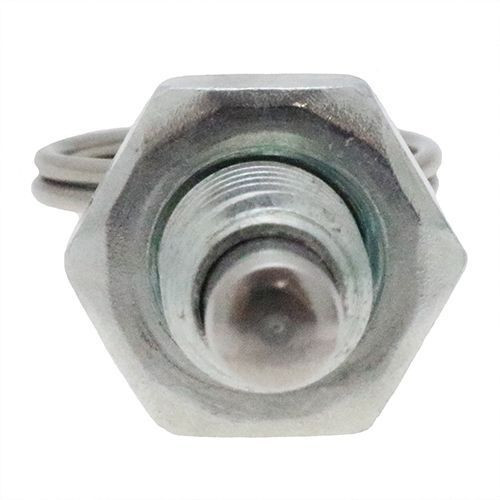

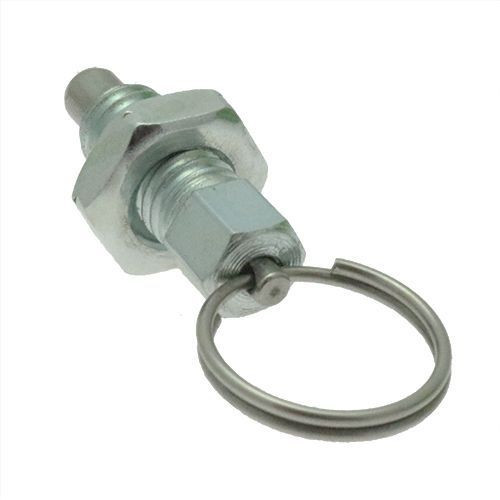

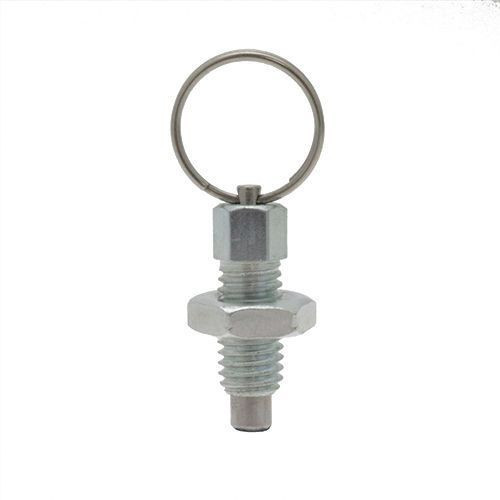

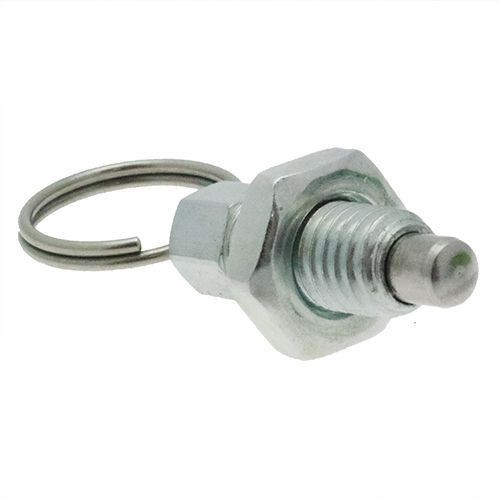

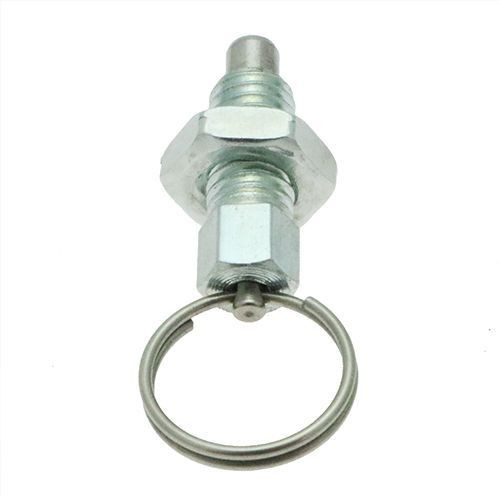

Product Description
This ring pull index plunger has a 18mm head diameter and a 16mm length. It has a 5mm plunger diameter and is sized to fit a M8 thread. It is constructed from Zinc Plated w/SS Pin.
Ring Pull Index Plungers are operated via a lift ring and locking nut to activate a retractable spring-loaded mechanism. Made from a zinc-plated steel threaded body and a stainless steel pin, these plungers are suitable for moderately weighted uses where load bearing is minimal.
They are commonly used in industrial hardware and machinery to lock or position an application. The lift ring on each plunger prevents gripping issues. These plungers are available in several sizes, with threaded body sizes between M6 and M12.
They are commonly used as index plungers to hold an object in position. Free samples may be available upon request for Business customers.
Ring Pull Index Plungers are operated via a lift ring and locking nut to activate a retractable spring-loaded mechanism. Made from a zinc-plated steel threaded body and a stainless steel pin, these plungers are suitable for moderately weighted uses where load bearing is minimal.
They are commonly used in industrial hardware and machinery to lock or position an application. The lift ring on each plunger prevents gripping issues. These plungers are available in several sizes, with threaded body sizes between M6 and M12.
They are commonly used as index plungers to hold an object in position. Free samples may be available upon request for Business customers.
