5mm x 20mm T-Handle Push Knob Detent Pin
Product code:
THDP003
View All Specifications
| Quantity | Unit Price (ex. VAT) |
Unit Price (inc. VAT) |
|---|---|---|
| 0 - 25 | £20.20 | £20.20 |
| 25 - 49 | £16.83 | £16.83 |
| 50 - 99 | £14.43 | £14.43 |
| 100 + | £12.63 | £12.63 |
£20.20
/ each
Quantity:
Product Stock

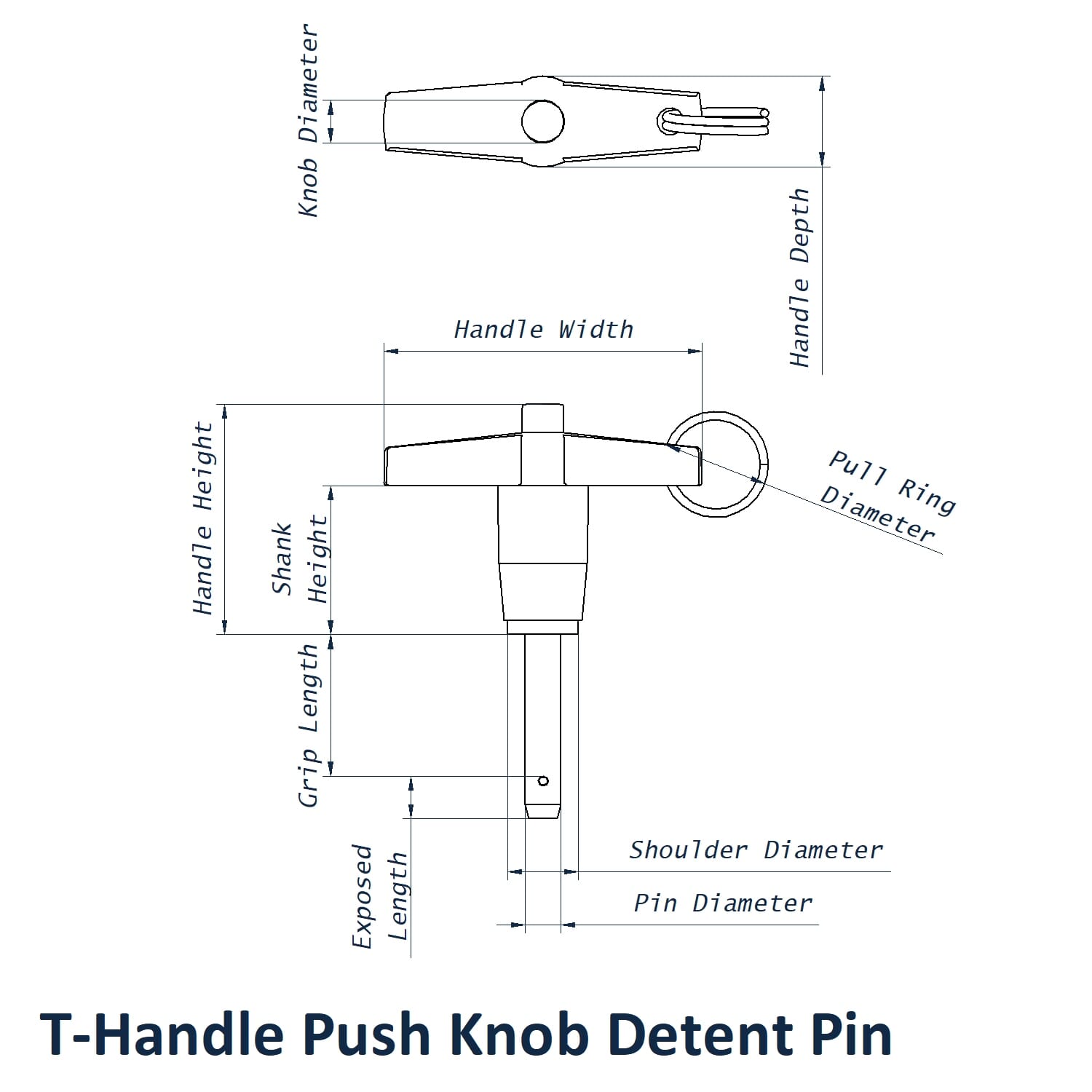

Product Specifications
THDP003- Material
- 303 Stainless Steel
- Shank Height
- 21mm
- Handle Height
- 32mm
- Shoulder Diameter
- 11mm
- Handle Width
- 45mm
- Pin Diameter
- 5mm
- Grip Length
- 20mm
- Pull Ring Diameter
- 15mm
- Exposed Length
- 6mm
- Knob Diameter
- 5.5mm
- Handle Depth
- 13mm
Same Day Dispatch Available
| Order by 4.00pm (UK) for same day dispatch (Monday – Thursday, 2.00pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
+
+
Total Price: £0.00
Product Description

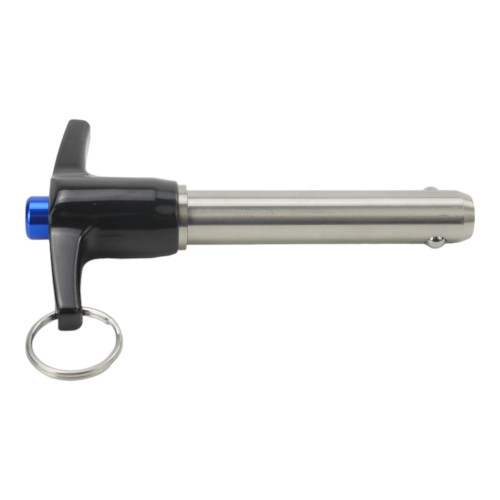

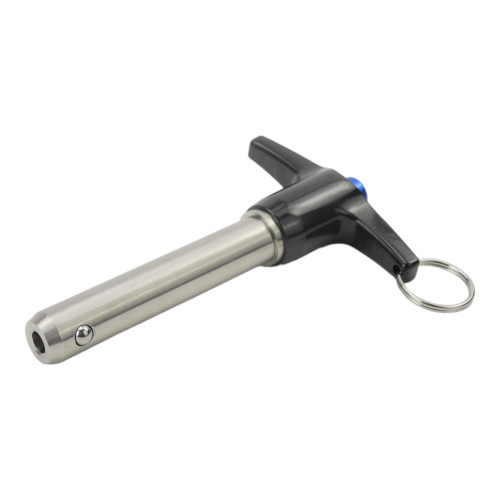

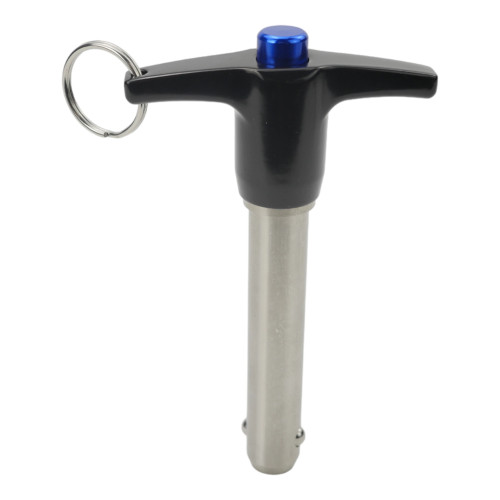

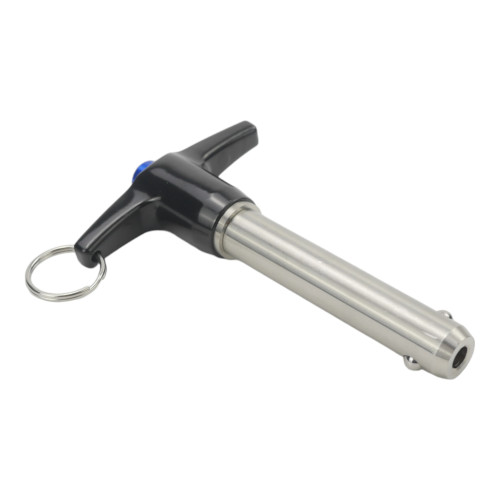

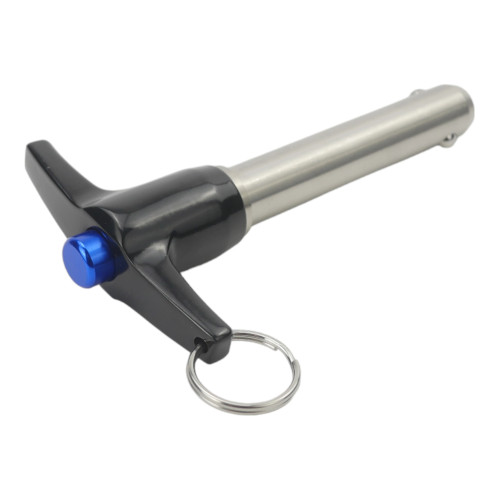

This T-Handle Push Knob Detent Pin has a Pin Diameter of 5mm, a Grip Length of 20mm and an Exposed Length of 6mm.
This T-Handle Push Knob Detention Pin is versatile, reusable and stocked in 303 Stainless Steel. This product has a Handle Width of 45mm and Pull Ring Diameter of 15mm for efficient removal.
This variant is designed to be inserted into a hole 0.1mm larger than the diameter of the body.
