10mm x 30mm Push Knob Detent Pin
Product code:
PKDP015
View All Specifications
| Quantity | Unit Price (ex. VAT) |
Unit Price (inc. VAT) |
|---|---|---|
| 0 - 25 | £28.98 | £28.98 |
| 25 - 49 | £24.15 | £24.15 |
| 50 - 99 | £20.70 | £20.70 |
| 100 + | £18.11 | £18.11 |
£28.98
/ each
Quantity:
Product Stock

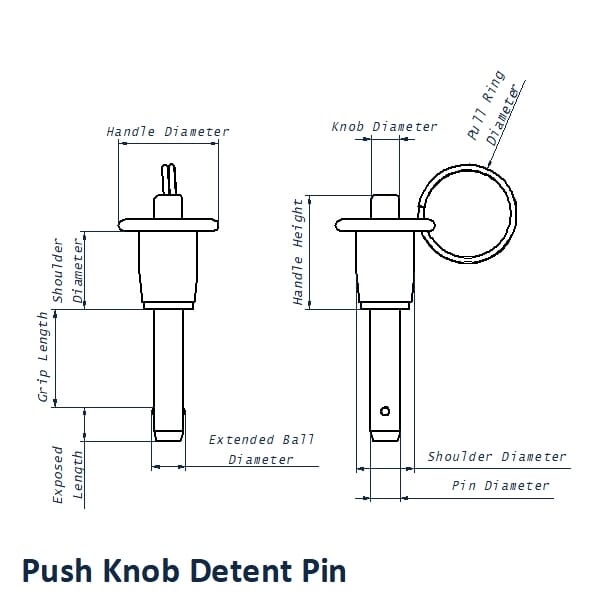

Product Specifications
PKDP015- Material
- 304 Stainless Steel
- Handle Height
- 25.7mm
- Shoulder Diameter
- 14.2mm
- Shoulder Height
- 17.8mm
- Pin Diameter
- 10mm
- Grip Length
- 30mm
- Handle Diameter
- 25.4mm
- Pull Ring Diameter
- 15mm
- Exposed Length
- 9mm
- Knob Diameter
- 7.4mm
- Extended Ball Diameter
- 11.9mm
Same Day Dispatch Available
| Order by 4.00pm (UK) for same day dispatch (Monday – Thursday, 2.00pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
+
+
Total Price: £0.00
Product Description

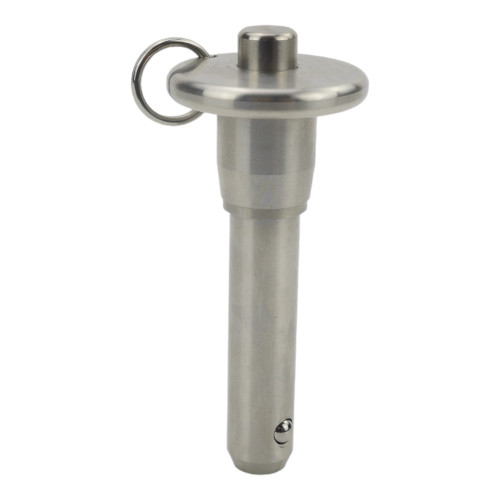

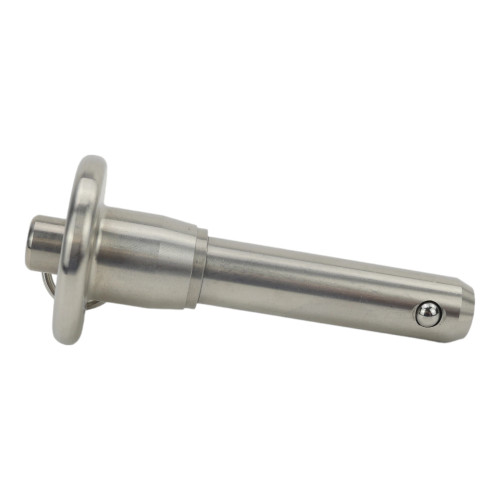

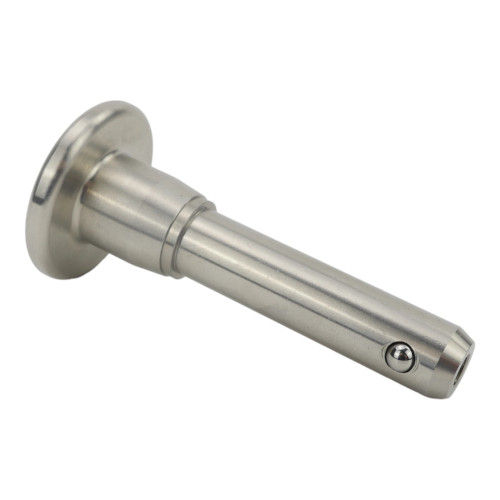

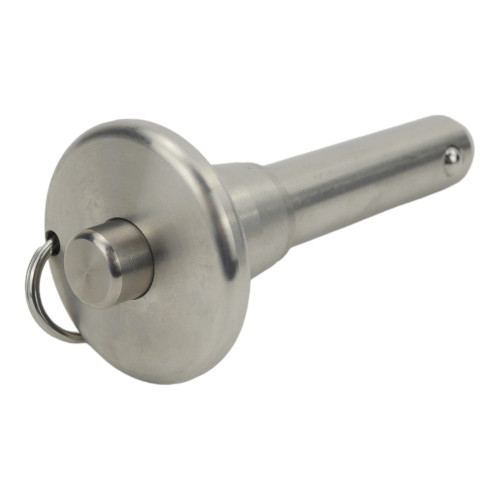

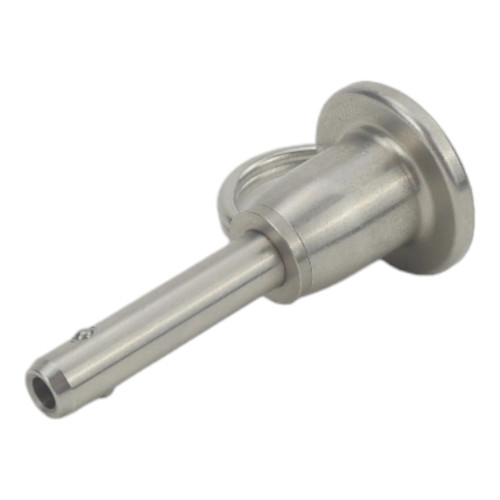

This Push Knob Detent Pin has a Pin Diameter of 10mm, a Grip Length of 30mm and an Exposed Length of 9mm.
This Push Knob Detention Pin is versatile, reusable and stocked in 304 Stainless Steel. This product has a Handle Diameter of 25.4mm and Pull Ring Diameter of 15mm for efficient removal.
This variant is designed to be inserted into a hole 0.1mm larger than the diameter of the body.
