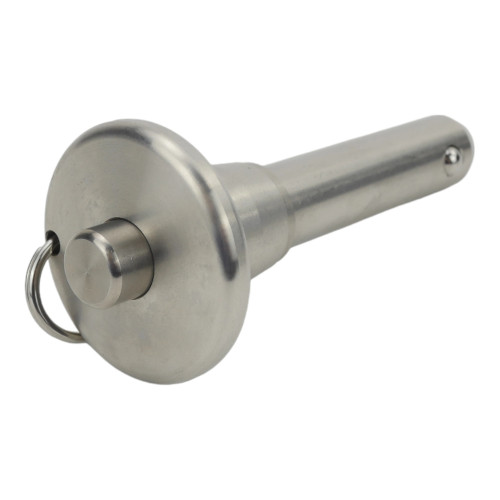

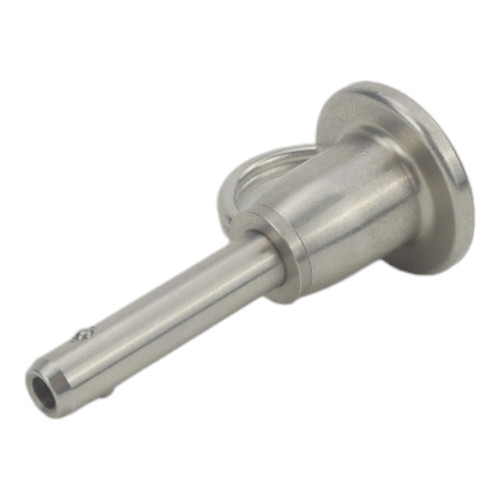

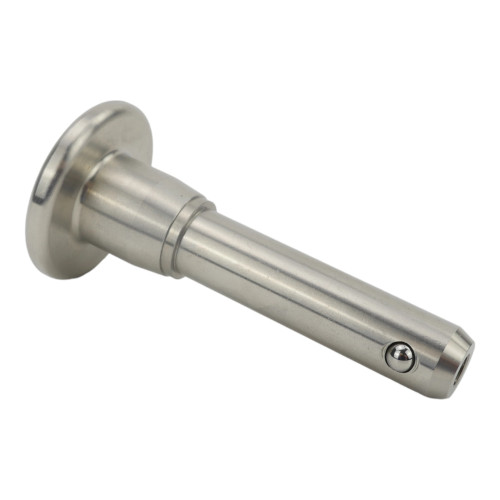

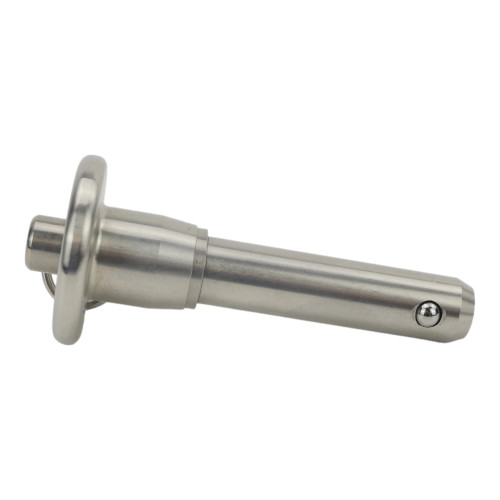

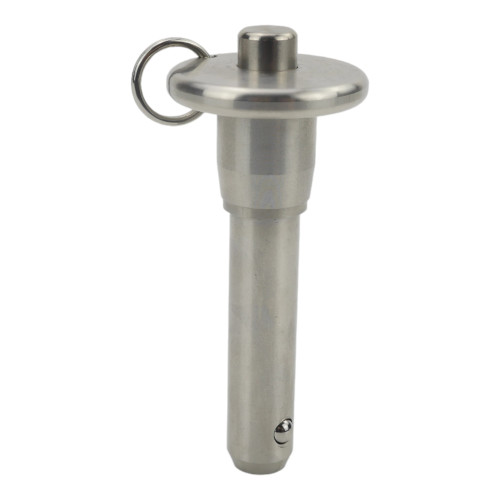

6mm x 20mm Push Knob Detent Pin
Product code:
PKDP006
View All Specifications
| Quantity | Unit Price (ex. VAT) |
Unit Price (inc. VAT) |
|---|---|---|
| 0 - 25 | £23.00 | £23.00 |
| 25 - 49 | £19.17 | £19.17 |
| 50 - 99 | £16.43 | £16.43 |
| 100 + | £14.38 | £14.38 |
£23.00
/ each
Quantity:
Product Stock

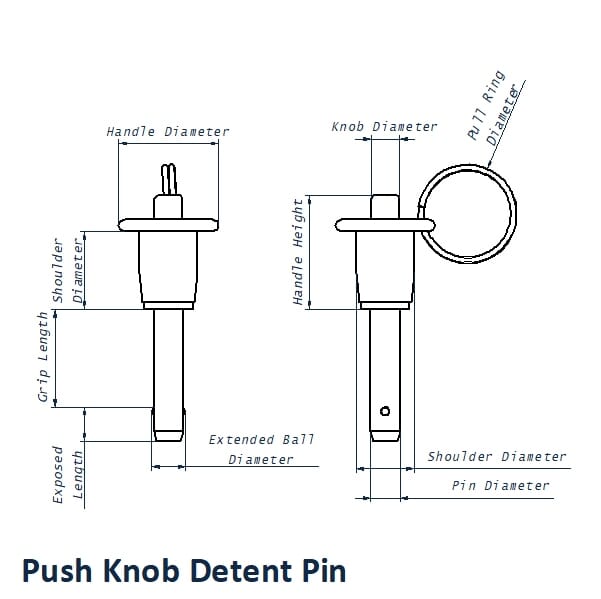

Product Specifications
PKDP006- Material
- 304 Stainless Steel
- Handle Height
- 23.4mm
- Shoulder Diameter
- 11.9mm
- Shoulder Height
- 16mm
- Pin Diameter
- 6mm
- Grip Length
- 20mm
- Handle Diameter
- 20.6mm
- Pull Ring Diameter
- 15mm
- Exposed Length
- 7mm
- Knob Diameter
- 5.8mm
- Extended Ball Diameter
- 7mm
Same Day Dispatch Available
| Order by 4.00pm (UK) for same day dispatch (Monday – Thursday, 2.00pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
+
+
Total Price: £0.00
Product Description
This Push Knob Detent Pin has a Pin Diameter of 6mm, a Grip Length of 20mm and an Exposed Length of 7mm.
This Push Knob Detention Pin is versatile, reusable and stocked in 304 Stainless Steel. This product has a Handle Diameter of 20.6mm and Pull Ring Diameter of 15mm for efficient removal.
This variant is designed to be inserted into a hole 0.1mm larger than the diameter of the body.
