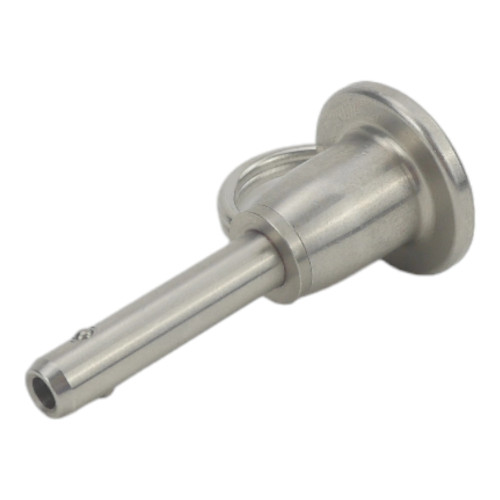

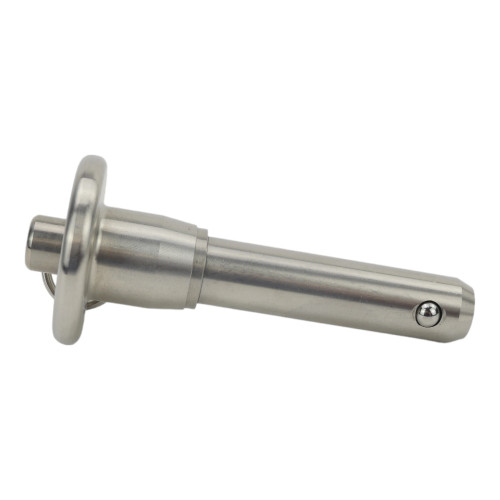

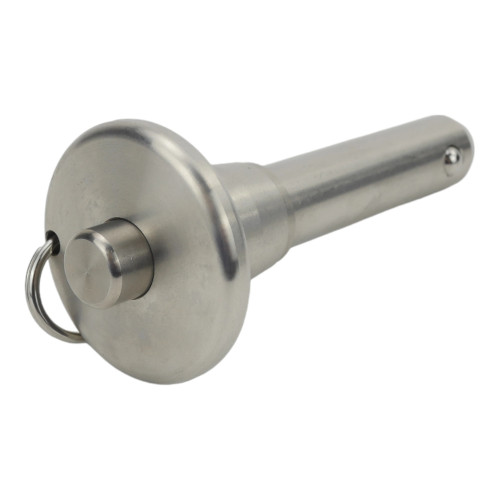

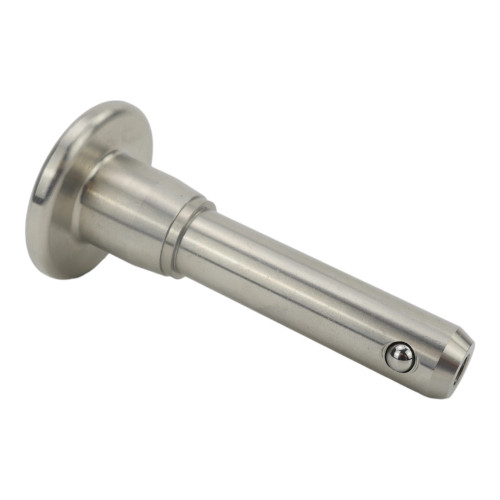

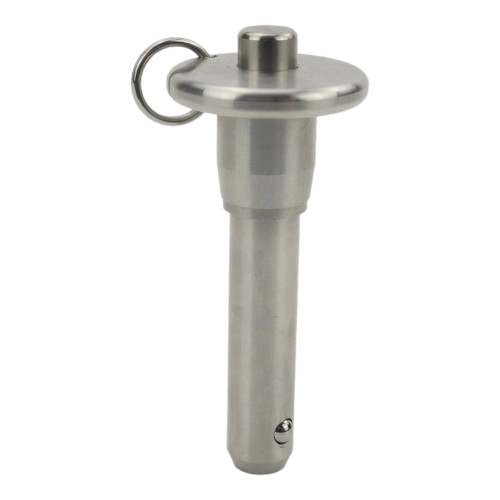

5mm x 25mm Push Knob Detent Pin
Product code:
PKDP004
View All Specifications
| Quantity | Unit Price (ex. VAT) |
Unit Price (inc. VAT) |
|---|---|---|
| 0 - 25 | £25.07 | £25.07 |
| 25 - 49 | £23.19 | £23.19 |
| 50 - 99 | £21.32 | £21.32 |
| 100 + | £18.66 | £18.66 |
£25.07
/ each
Quantity:
Product Stock

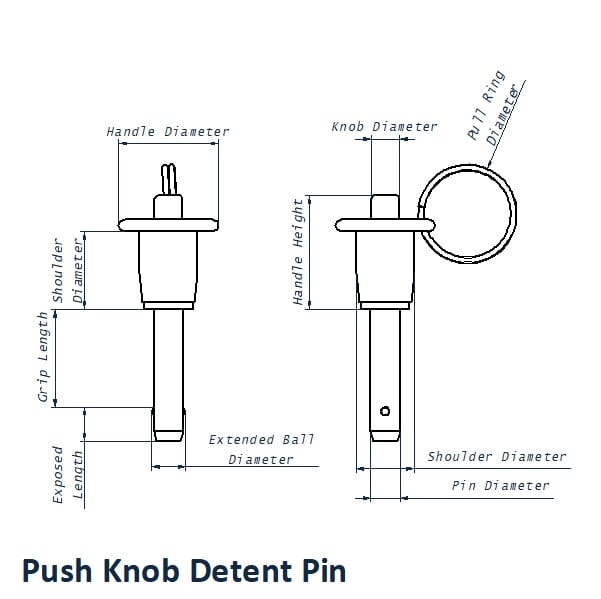

Product Specifications
PKDP004- Material
- 304 Stainless Steel
- Handle Height
- 23.4mm
- Shoulder Diameter
- 11.9mm
- Shoulder Height
- 16mm
- Pin Diameter
- 5mm
- Grip Length
- 25mm
- Handle Diameter
- 20.6mm
- Pull Ring Diameter
- 15mm
- Exposed Length
- 6mm
- Knob Diameter
- 5.8mm
- Extended Ball Diameter
- 5.5mm
Same Day Dispatch Available
| Order by 4.00pm (UK) for same day dispatch (Monday – Thursday, 2.00pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
+
+
Total Price: £0.00
Product Description
This Push Knob Detent Pin has a Pin Diameter of 5mm, a Grip Length of 25mm and an Exposed Length of 6mm.
This Push Knob Detention Pin is versatile, reusable and stocked in 304 Stainless Steel. This product has a Handle Diameter of 20.6mm and Pull Ring Diameter of 15mm for efficient removal.
This variant is designed to be inserted into a hole 0.1mm larger than the diameter of the body.
